小松产业机械(上海)有限公司

产品介绍
Products

H2W(110-400t) 前后对称高刚性闭式压力机

• 小松研发的高度控制方式,实现了极高的加工精度
Advanced control method originated with komatsu for high forming accuracy

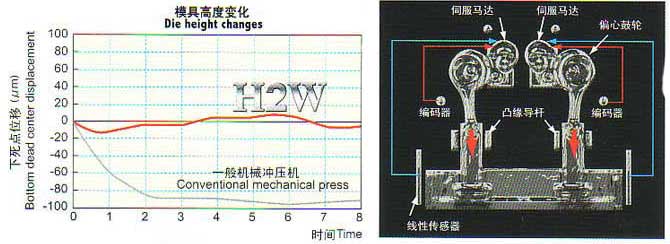

• 下死点修正功能
BDC adjust function
线性传感器测量下死高度,并自动进行修正。
The BDC height is measured by liner sensor for automatic offset.

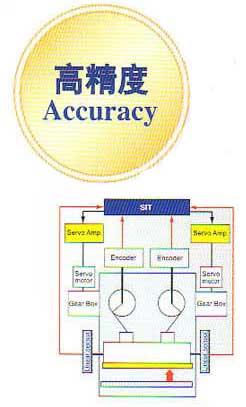

• 平行度修正功能
Lower limit position control function
采用左右独立驱动/控制的方式,自动修正左右偏移。
Through the right/left independent drive and control method deviation between the right and left sides is offset automatically.
• 压力控制功能(选配)
Load adjust function(option)
对长时间运转时的成型压力变化进行检测,并加以修正。
Fluctiation in forming pressure during long-time operation is detected and corrected.

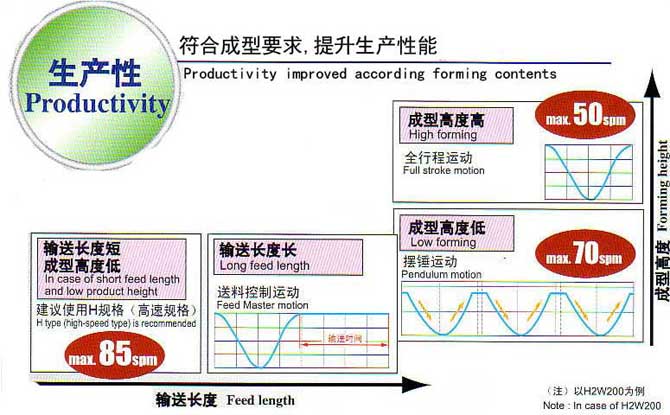

• 成型性 Formability

自由运动可适用各种成型要求。
By Free motion,it can cope yarious forming.

设计巧妙,可自由使用。可轻松的调出已登录的运动。
Flexible applications up to your ingenuity Registered motions be easily called.
足够深拉加工的能量
Satislactory Energy for Deep Drawing

容许工作量高(能量)足以进行深拉伸加工。
Large allowable work energy sufficient for deep drawing.
与机械冲压不同的是,即使放慢成型速度也不会导致容许工作量下降,因此可在缓慢的拉伸运动下提高成型性。
Unlike the mechanical press,the allowable work energy is not lowerd even when the forming speed is lowered.
与伺服模具缓冲垫组合后可令成型性进一步提升
Increased formability by combining the servo die cushion
